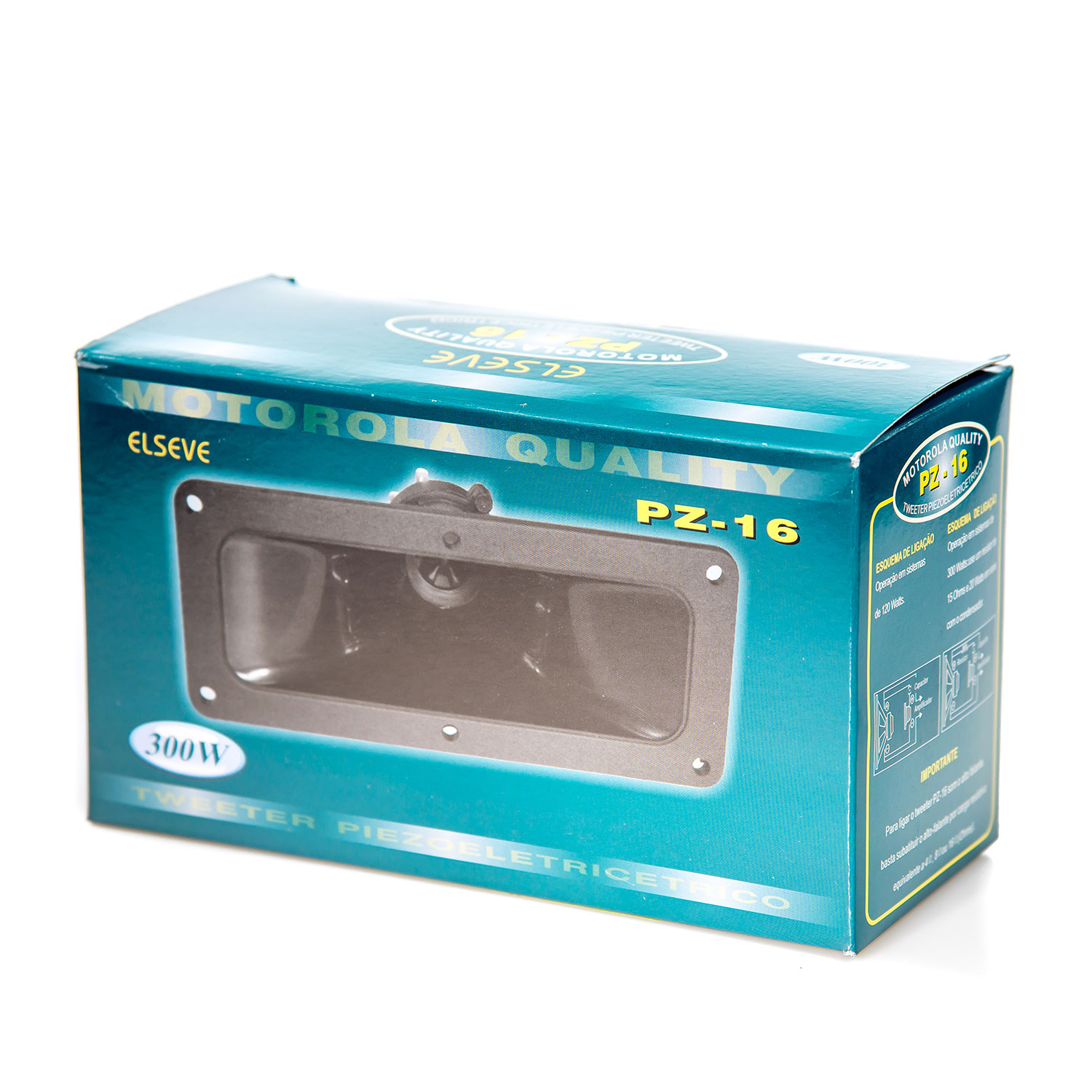

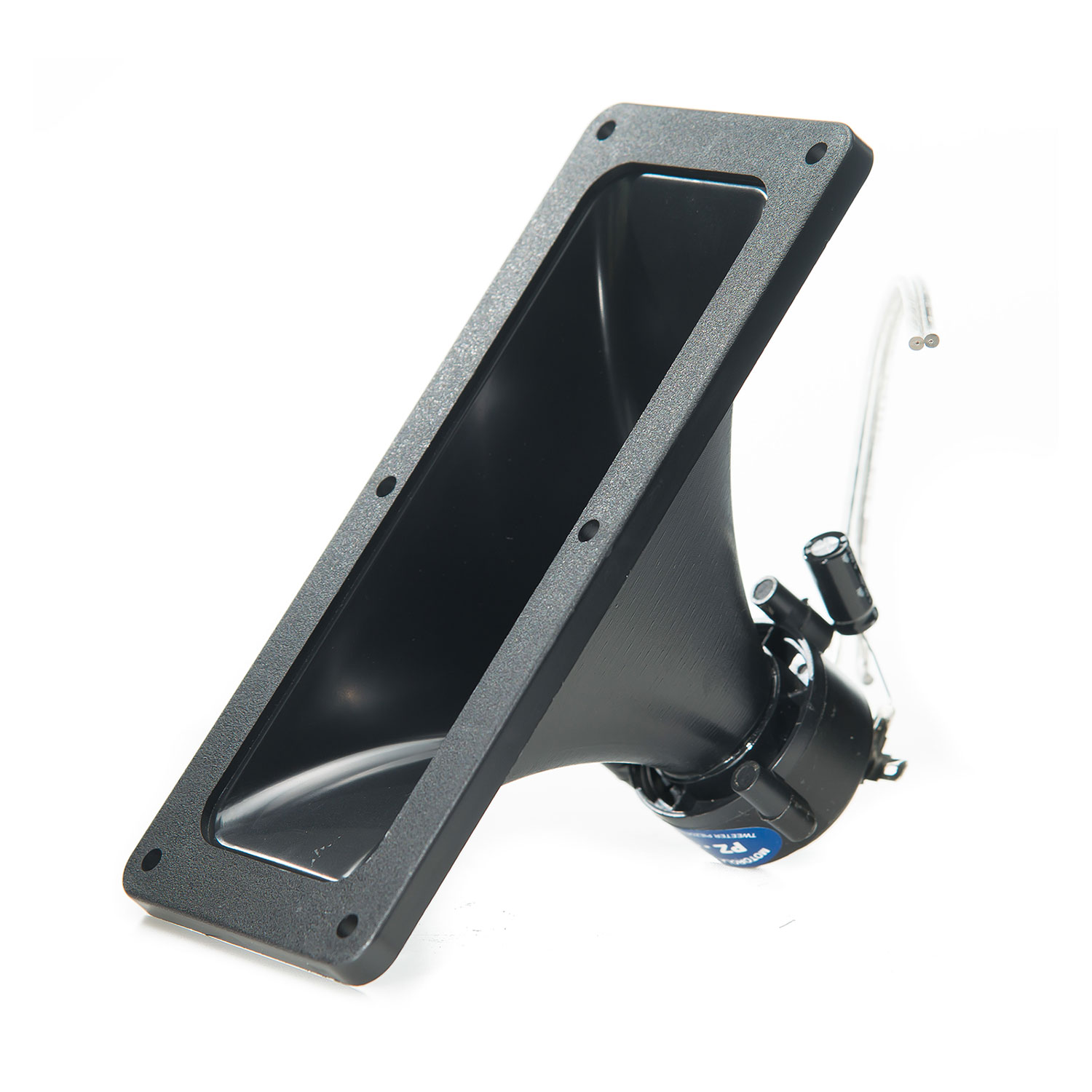

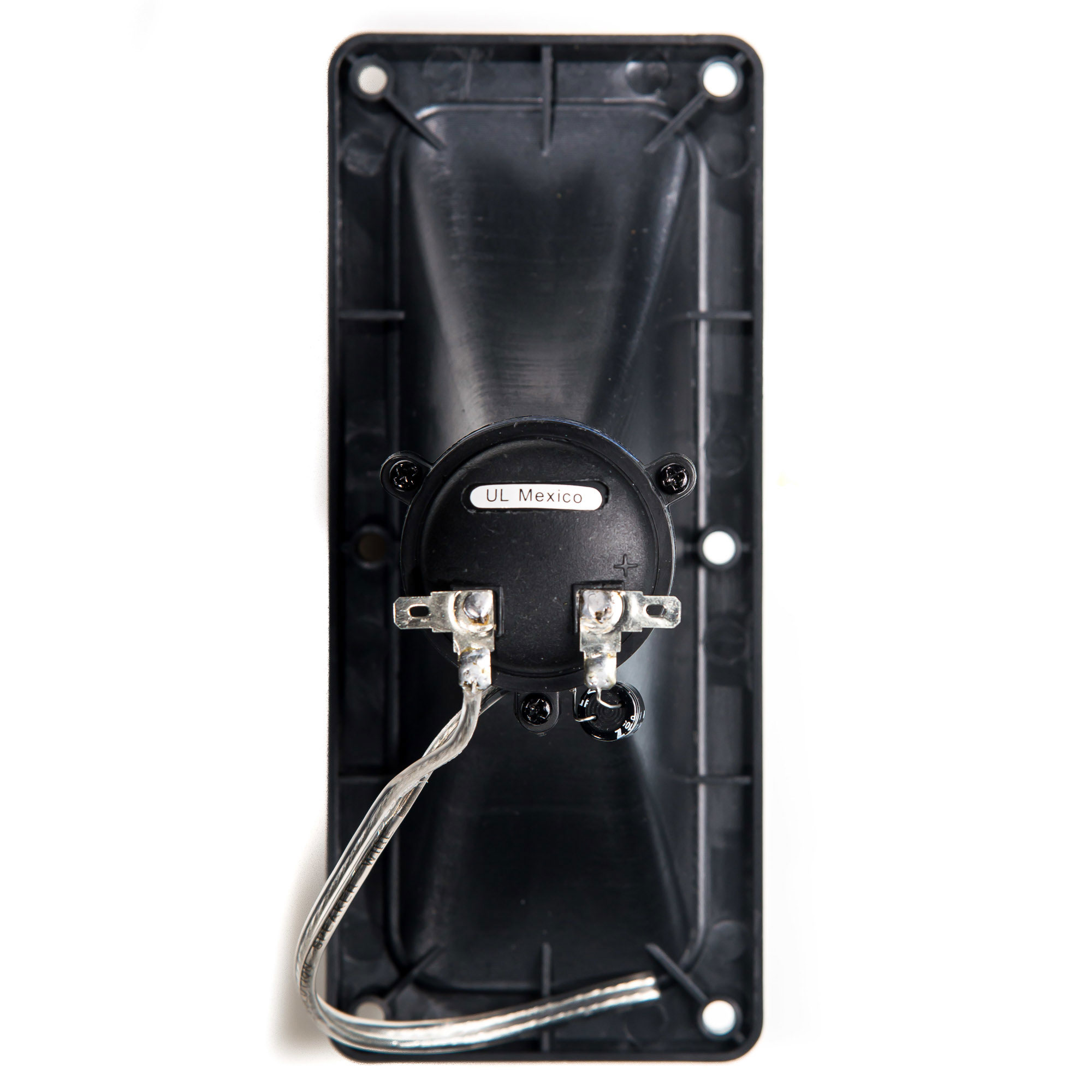

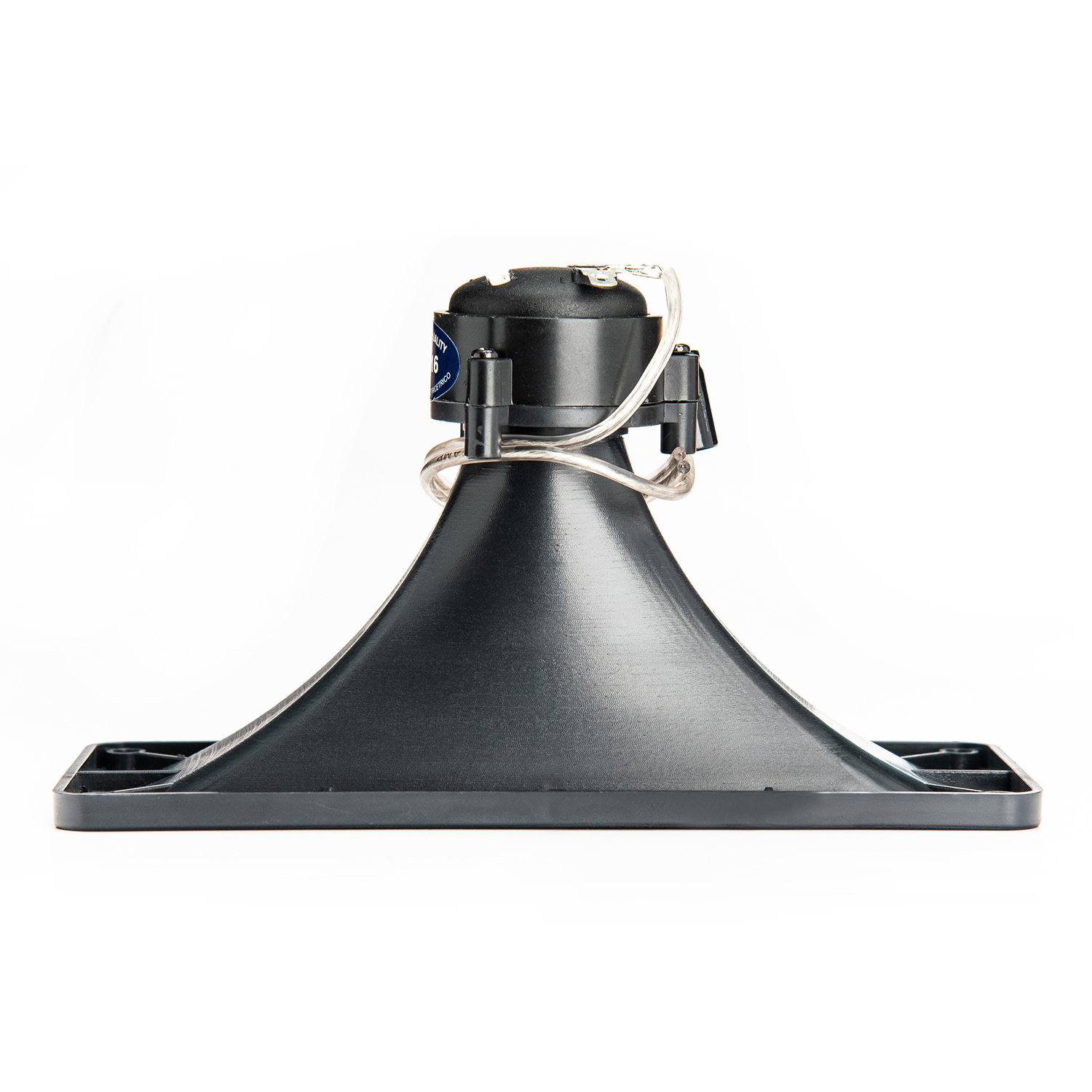

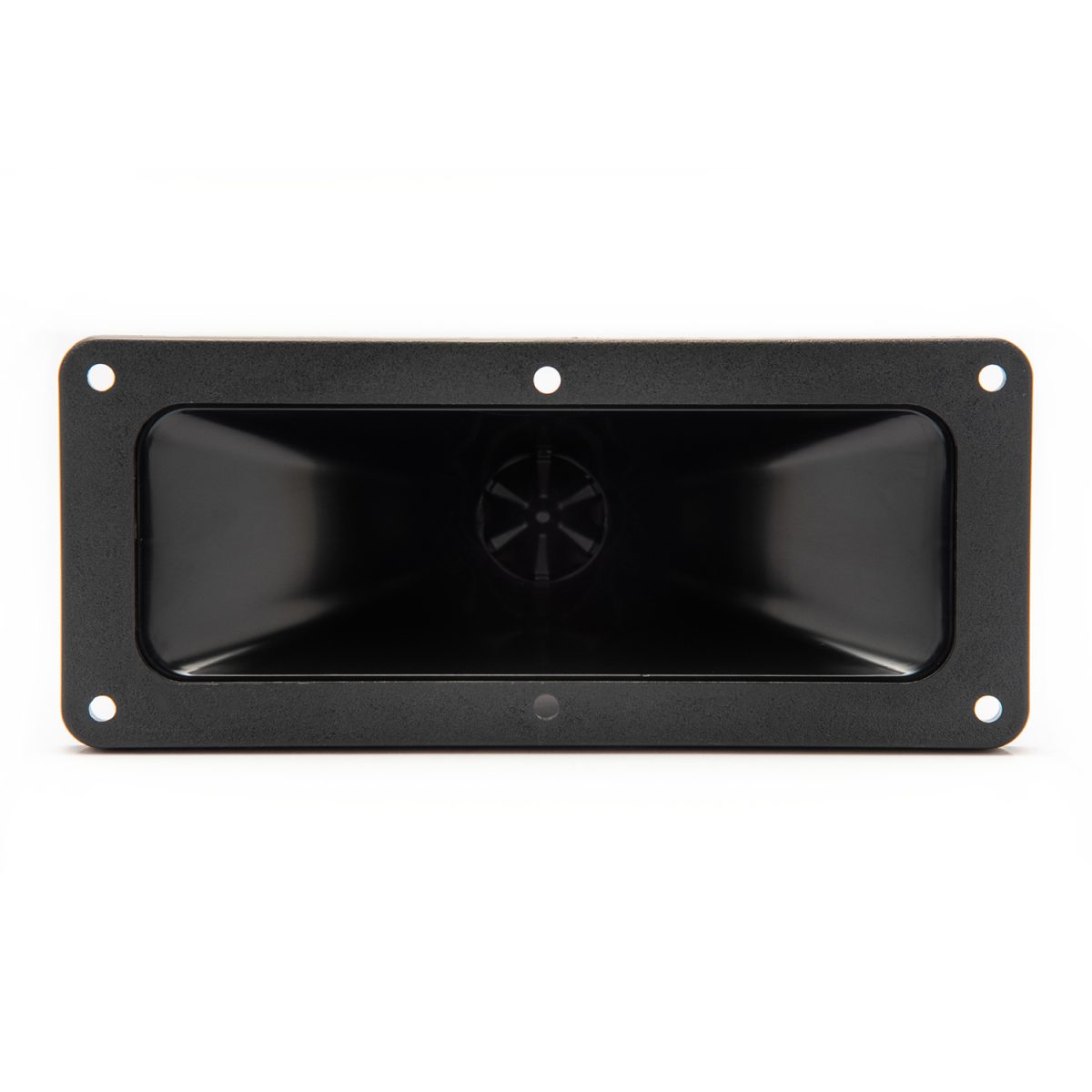

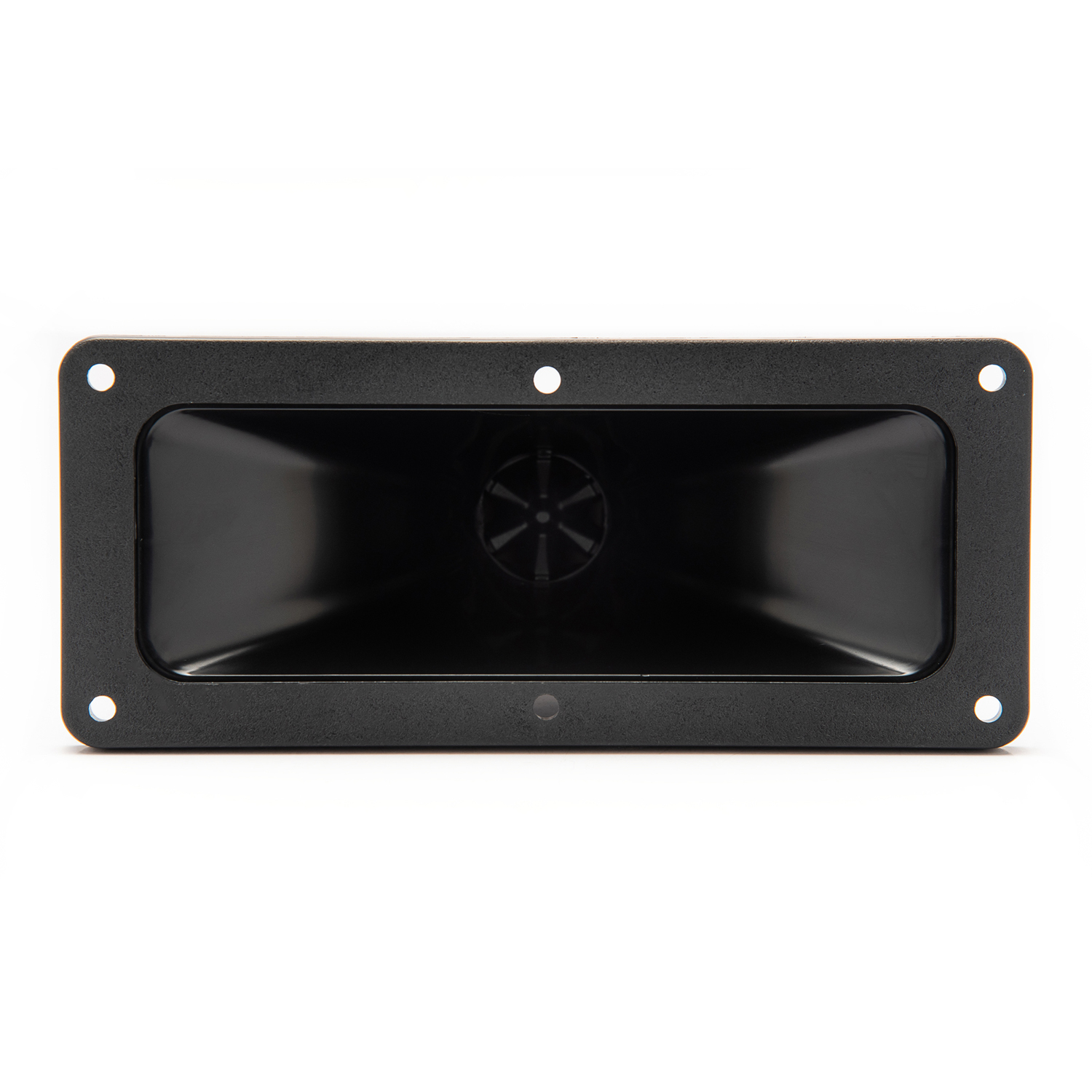

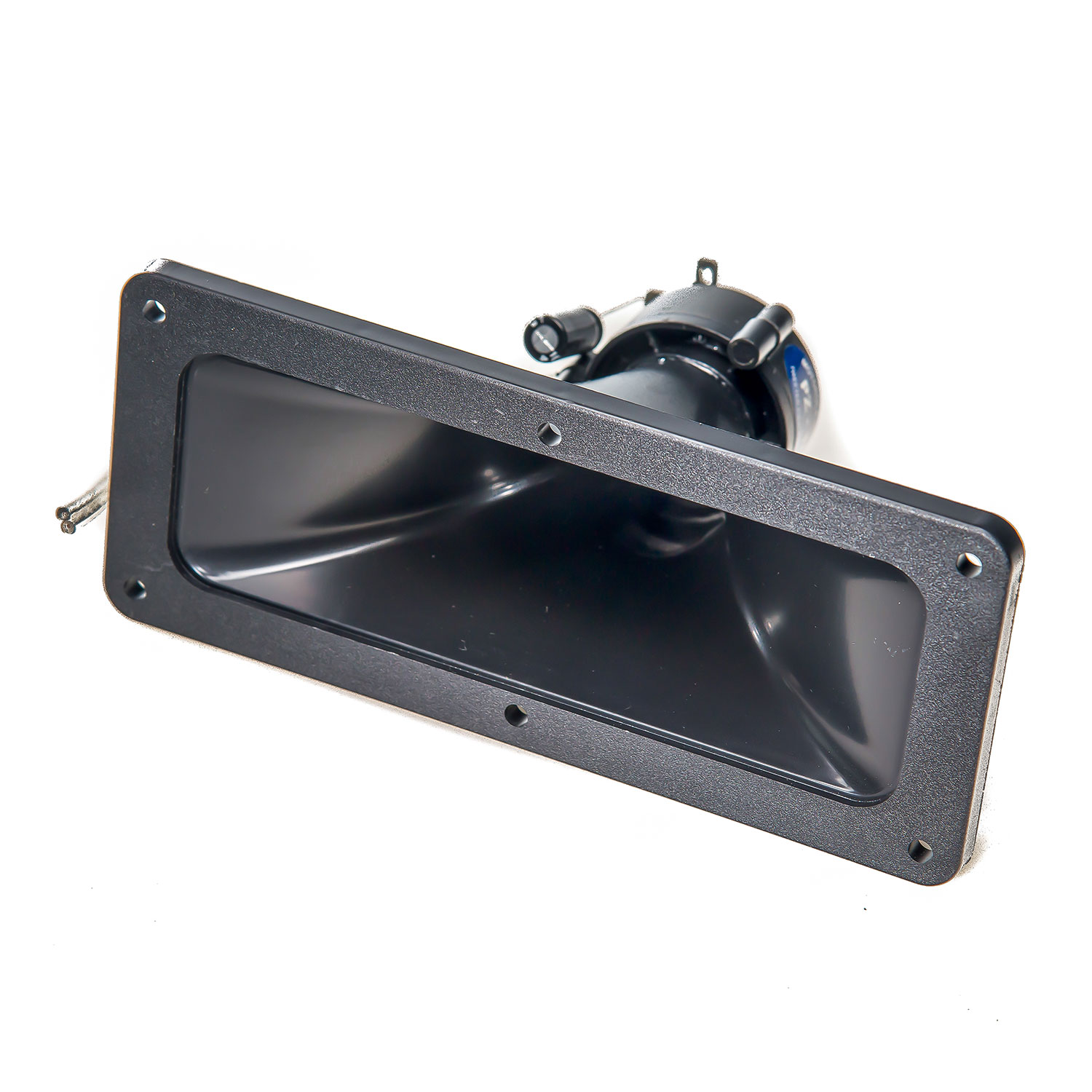

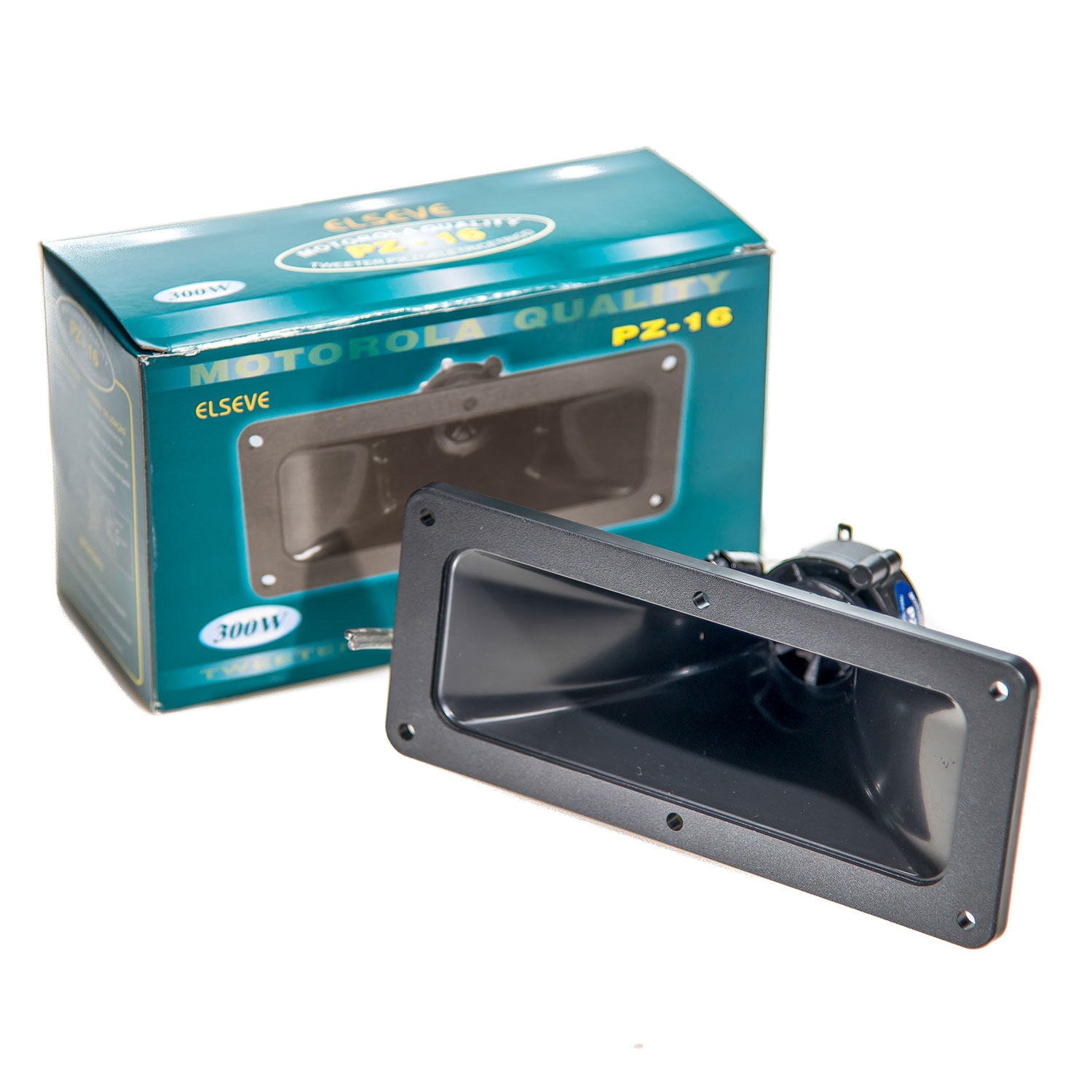

Elseve Piezo Tweeter PZ-16
| Power RMS/Max | 150W/300W |
|---|---|
| Impedance | 4 to 8 Ohm |
| Frequency Response | 5KHz – 20KHz |
| Sensitivity | 105dB |
| Dispersion | 40°H x 55°V – 6dB Points |
| Dimension (W x H x D) | 187 x 80 x 105mm |
pz16
