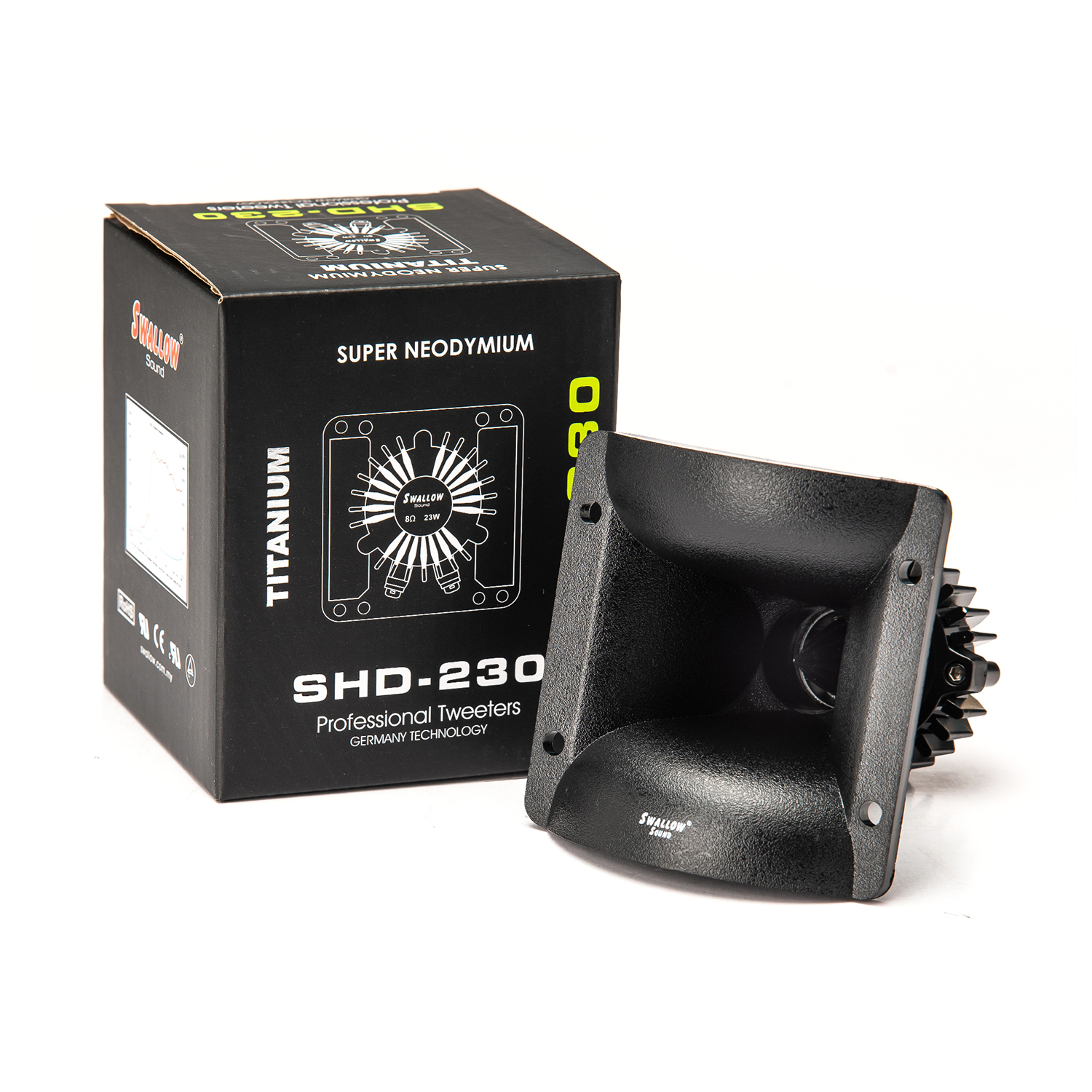

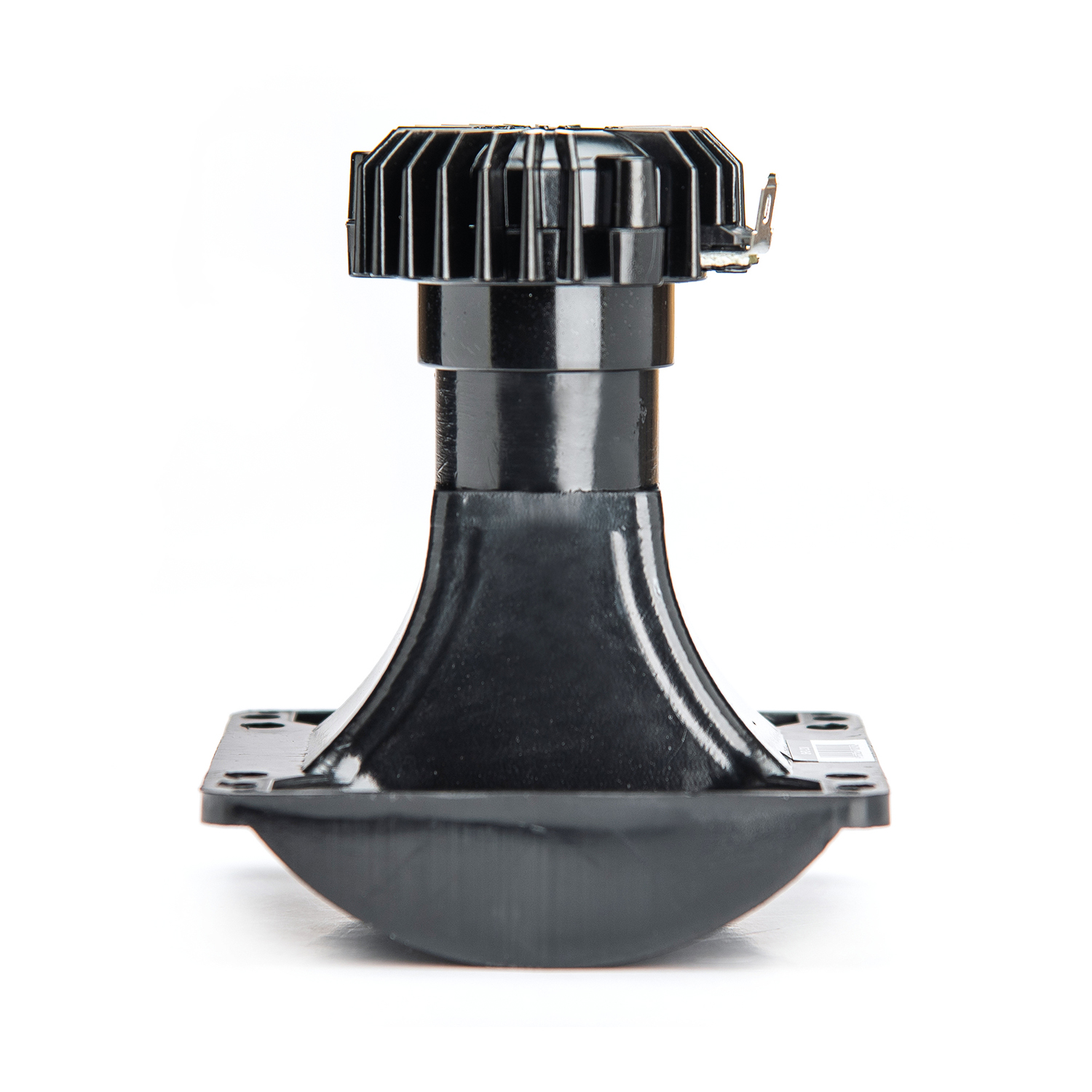

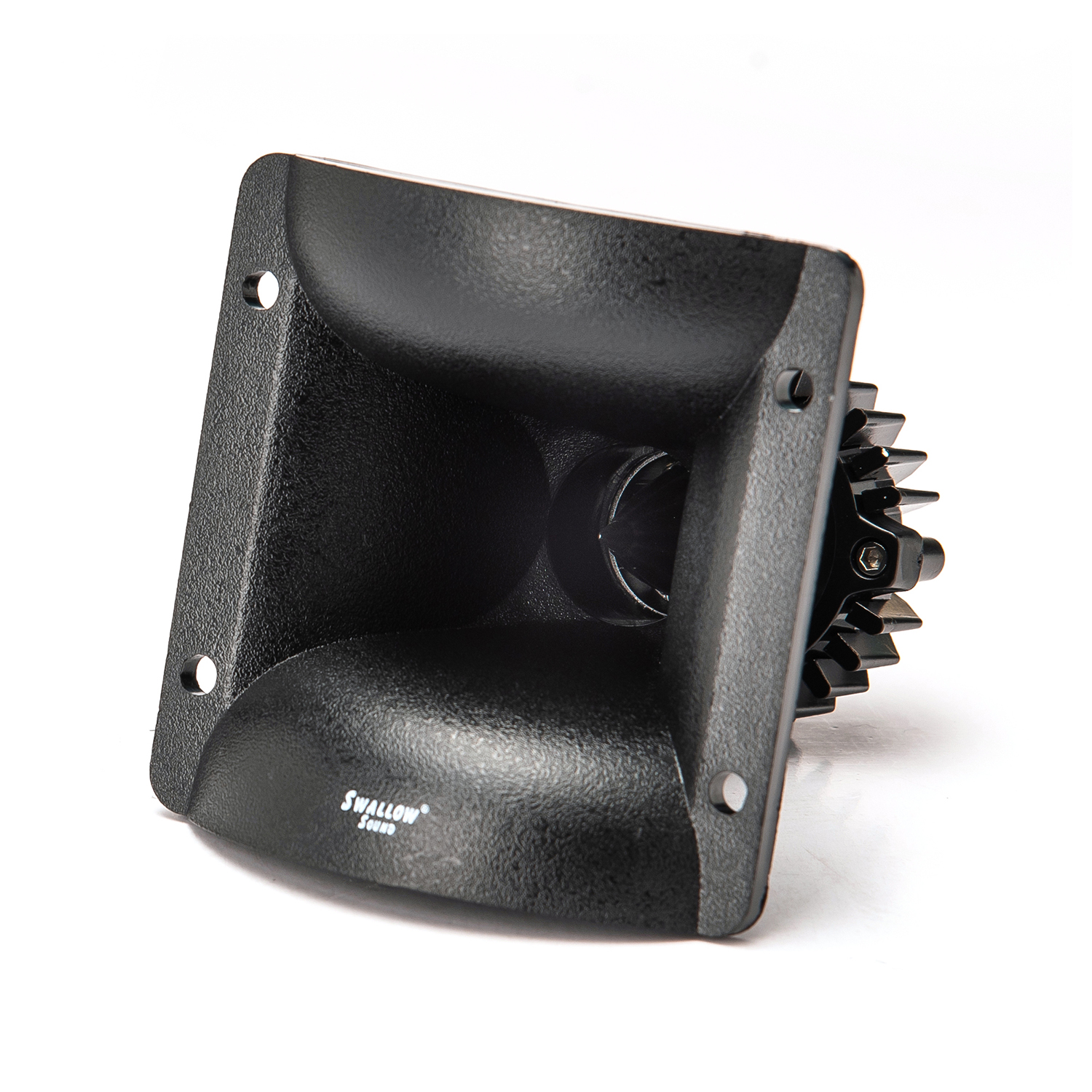

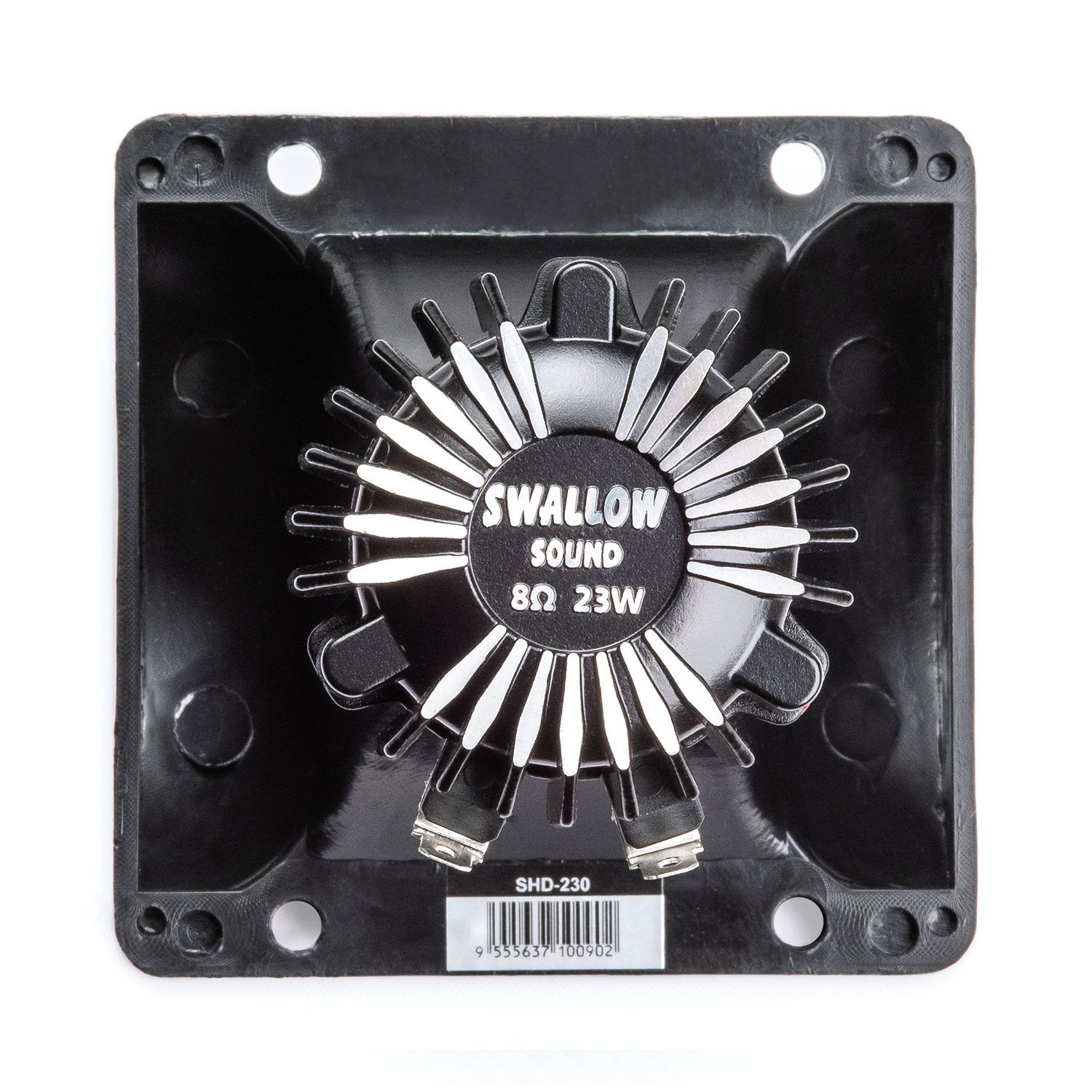

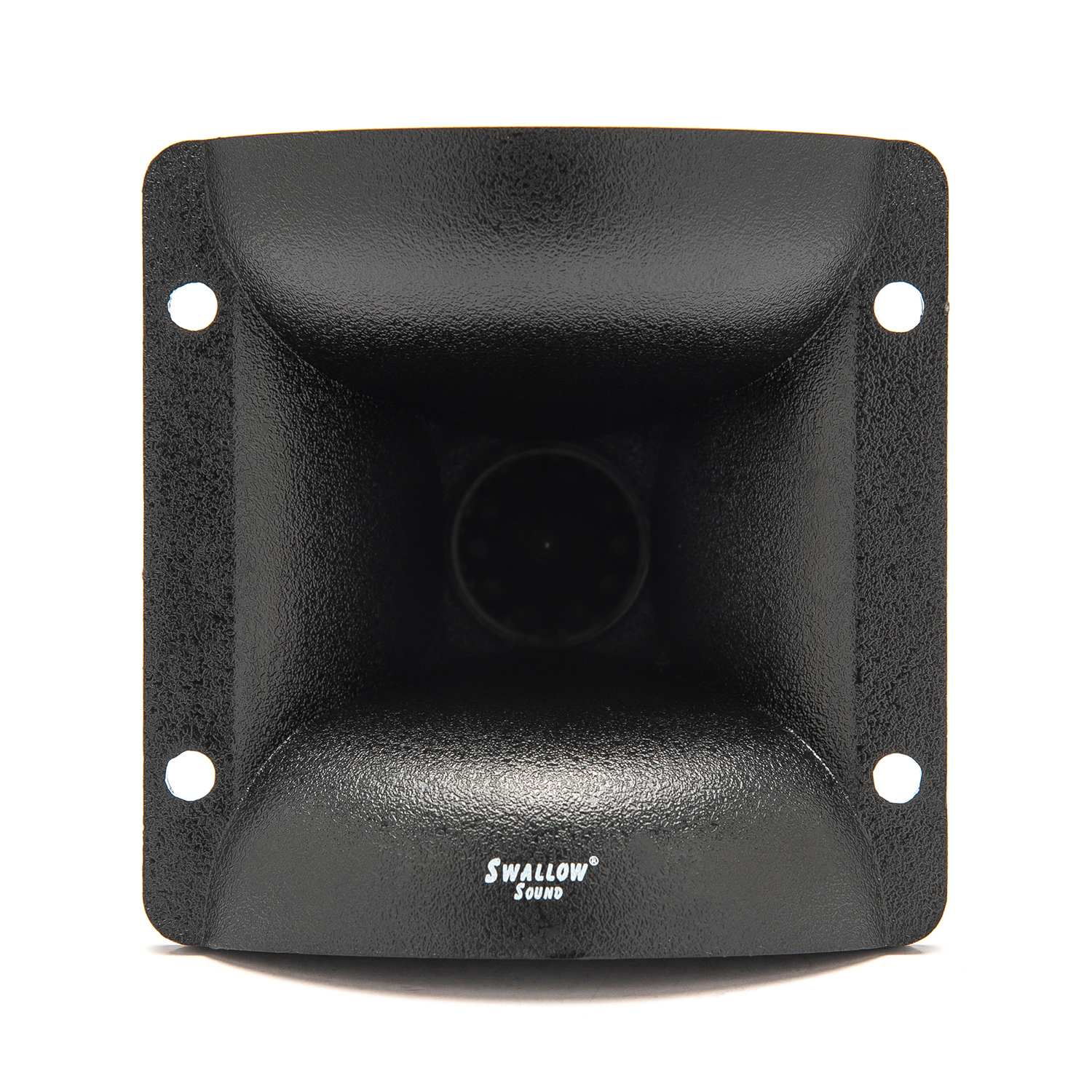

Swallow Sound Horn Tweeter SHD-230

Power Capacity 23 Watts RMS
Nominal Impedance 8 Ohm
Sensitivity (1W/1M) 106dB
Frequency Range 1.5KHz – 18KHz
Diaphragm Material Titanium
Voice Coil Diameter 1 Inch (25.4mm)
Voice Coil Material Round Copper
Material Engineering Plastic
Flux Density 1.35T
Magnet Neodymium N-38
Dimension (W x H x D) 89 x 89 x 105 mm

SHD230
