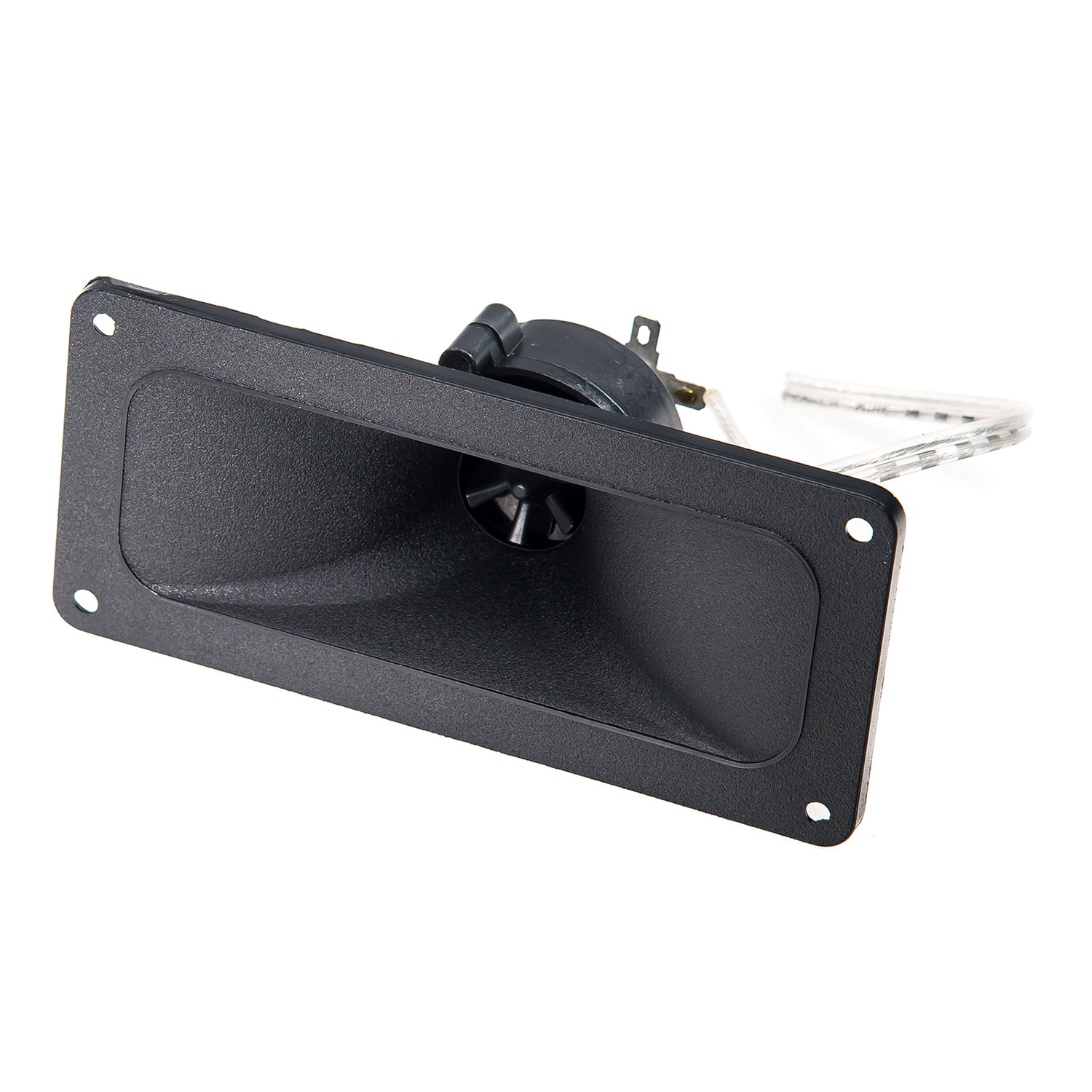

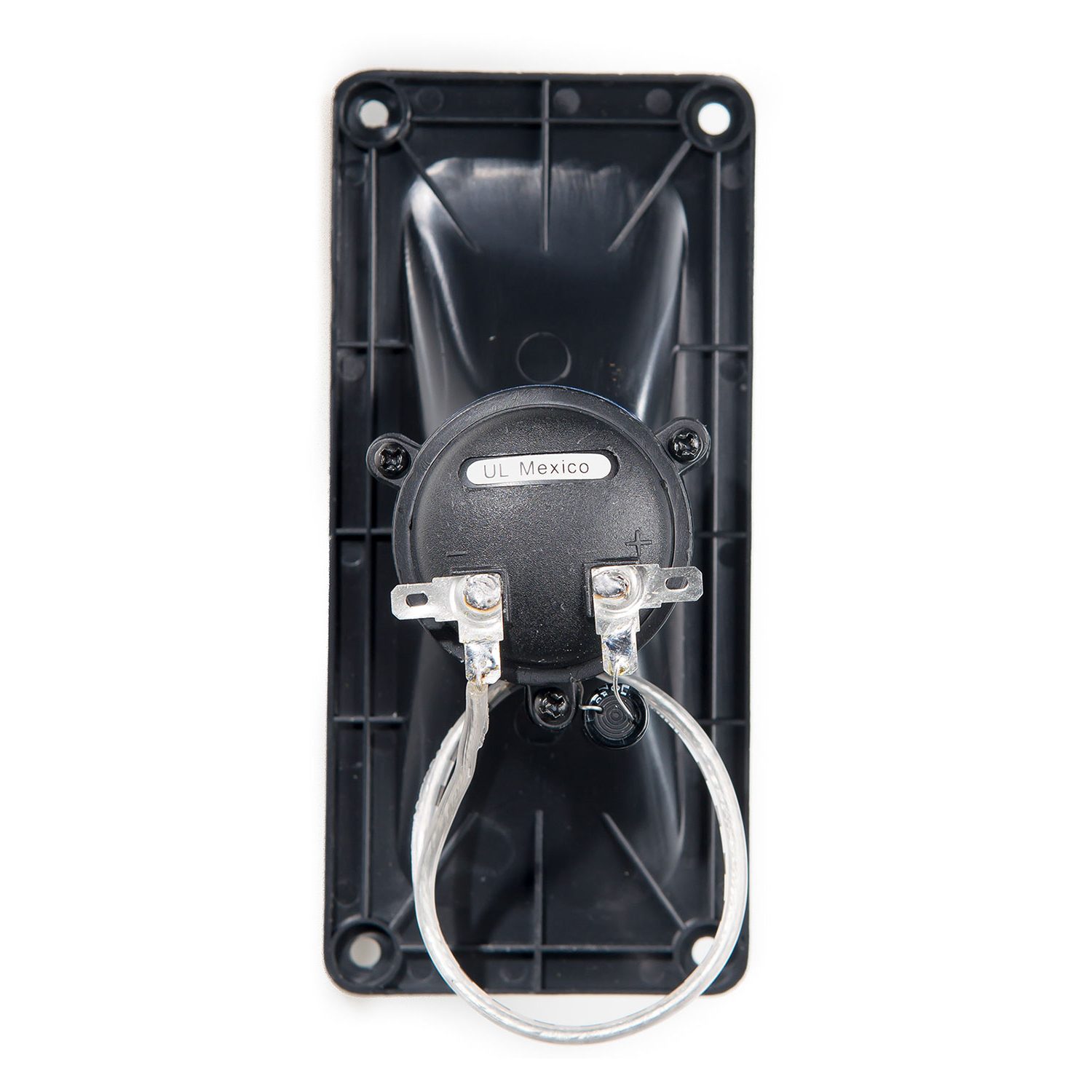

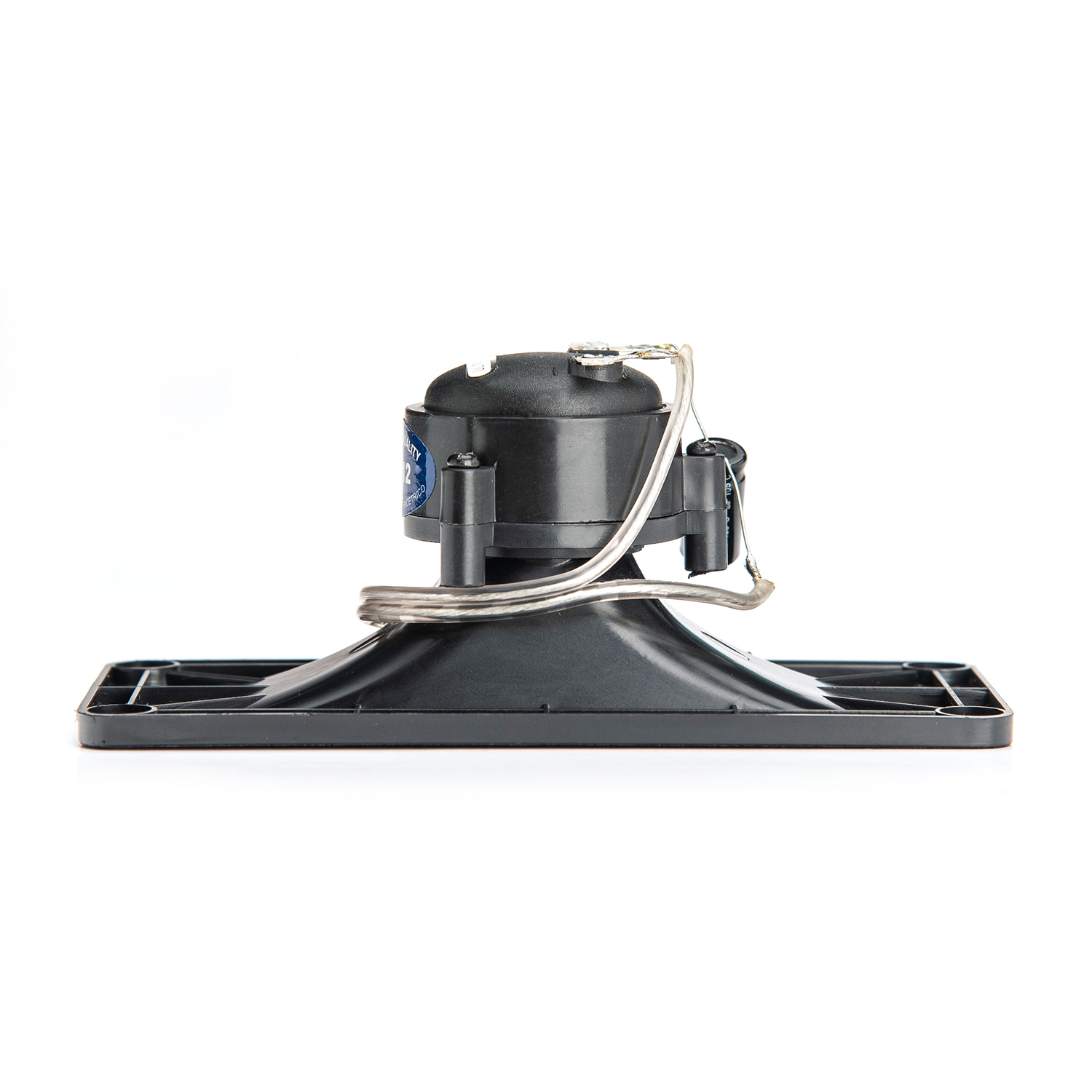

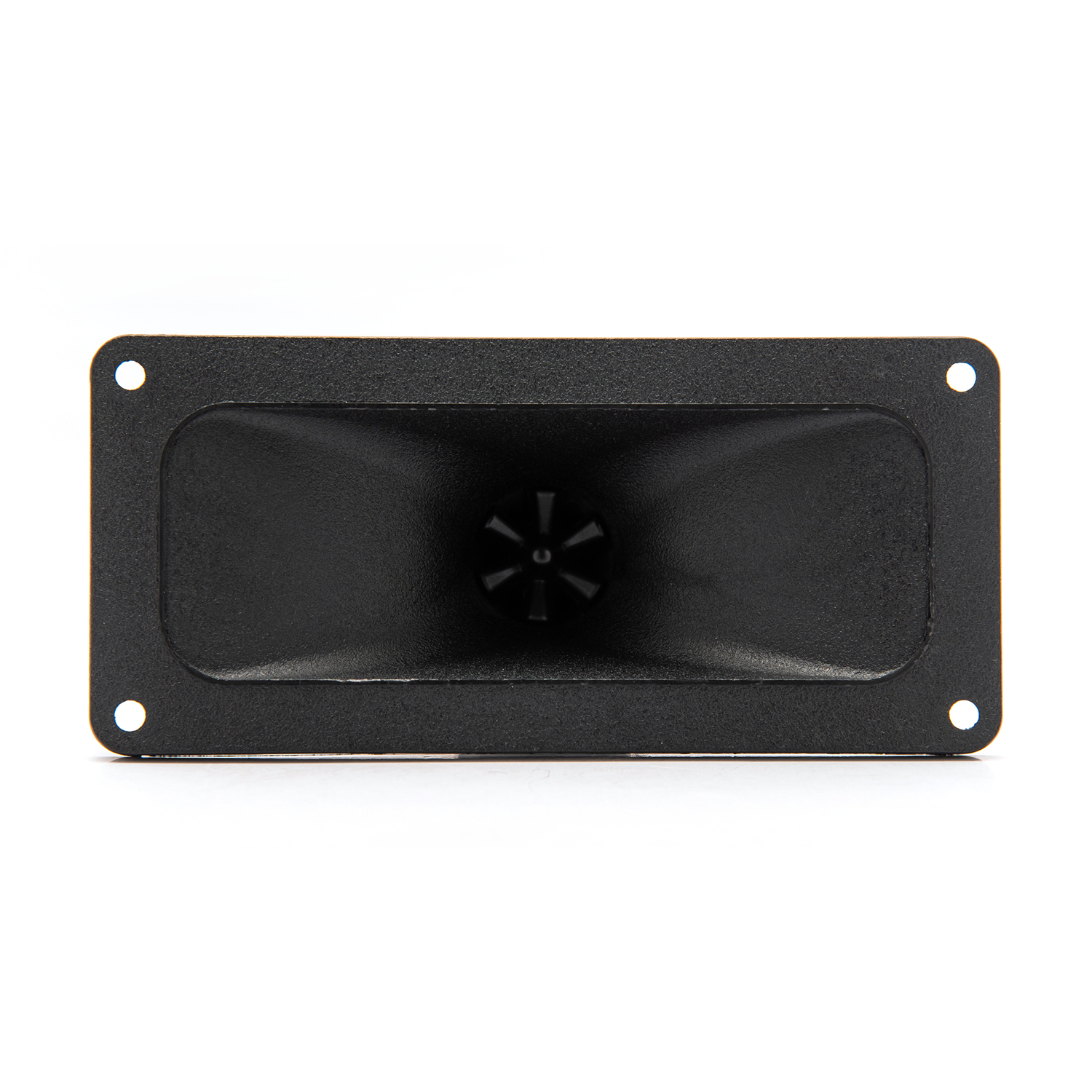

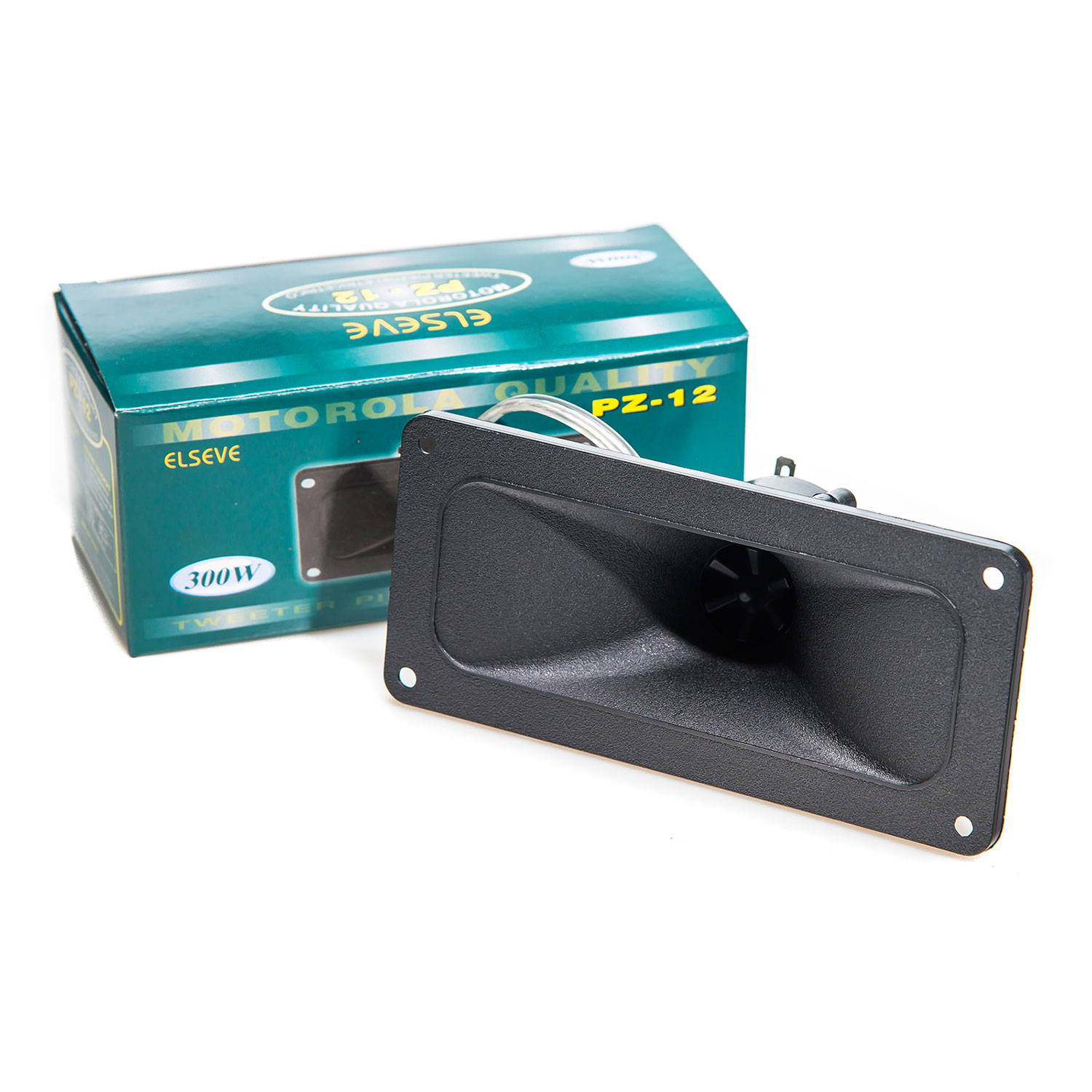

Elseve Piezo Tweeter PZ-12
Power RMS/Max | 150W/300W |
---|---|
Impedance | 4 to 8 Ohm |
Frequency Response | 5KHz – 20KHz |
Sensitivity | 105dB |
Dispersion | 40°H x 55°V – 6dB Points |
Dimension (W x H x D) | 147 x 68 x 60mm |
pz12
Category: Speakers
