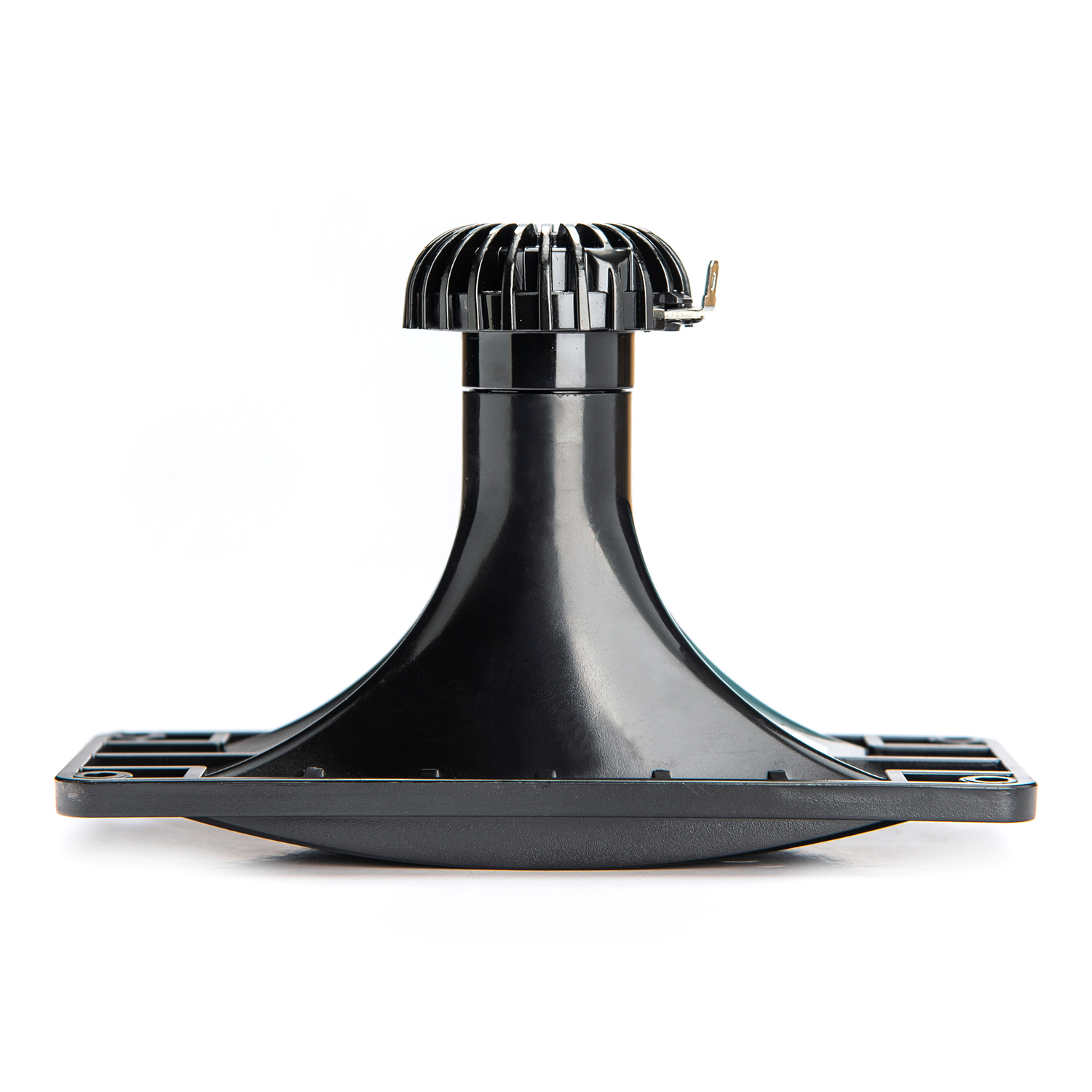

Swallow Sound Horn Tweeter SHD-260
| Power Capacity | 28 Watts RMS |
|---|---|
| Nominal Impedance | 8 Ohm |
| Sensitivity (1W/1M) | 107dB |
| Frequency Range | 1.6KHz – 20KHz |
| Diaphragm Material | Titanium |
| Voice Coil Diameter | 1 Inch (25.4mm) |
| Voice Coil Material | Round Copper |
| Material | Engineering Plastic |
| Flux Density | 1.6T |
| Magnet | Neodymium N-45 |
| Dimension (W x H x D) | 186 x 78 x 124mm |
SHD260
Related products
Close
Audax Horn Tweeter AX-10
| Power Capacity | 28 Watts RMS |
|---|---|
| Nominal Impedance | 8 Ohm |
| Sensitivity (1W/1M) | 109dB |
| Frequency Range | 1.5KHz - 20KHz |
| Diaphragm Material | Phenolic |
| Voice Coil Diameter | 1 Inch (25.4mm) |
| Resettable PTCs | JK 16-0501 |
| Voice Coil Material | Round Copper |
| Material | ABS |
| Flux Density | 1.6T |
| Magnet | Neodymium N45 |
| Dimension (W x H x D) | 130 x 130 x 100mm |
Close
Elseve Piezo Tweeter PZ-16
| Power RMS/Max | 150W/300W |
|---|---|
| Impedance | 4 to 8 Ohm |
| Frequency Response | 5KHz - 20KHz |
| Sensitivity | 105dB |
| Dispersion | 40°H x 55°V – 6dB Points |
| Dimension (W x H x D) | 187 x 80 x 105mm |
Close
Nestamp Piezo Tweeter NX-2
| Maximum Power | 75W (EIA RS426) |
|---|---|
| Handling Capacity | 8 Ohm System Reference |
| Frequency Response | 4KHz - 27KHz |
| Average Sensitivity | 94dB (1 watt / 1 meter) |
| Maximum Voltage | 15 V rms continuous |
| 35 V rms intermittent | |
| Dimension (W x H x D) | 147 x 68 x 52mm |
Close
Swallow Sound Piezo Tweeter SB-140M
| Power RMS/Max | 75W/150W |
|---|---|
| Impedance | 4 to 8 Ohm |
| Frequency Response | 5KHz - 20KHz |
| Sensitivity | 105dB |
| Dimension (W x H x D) | 85 x 85 x 78mm |
Close
Swallow Sound Piezo Tweeter SB-120
| Power RMS/Max | 75W/150W |
|---|---|
| Impedance | 4 to 8 Ohm |
| Frequency Response | 4.5KHz - 20KHz |
| Sensitivity | 91dB (1 watt / 1 meter) |
| Dimension (W x H x D) | 147 x 68 x 52mm |
Close
Swallow Sound Piezo Tweeter SB-307
| Power RMS/Max | 75W/150W |
|---|---|
| Impedance | 4 to 8 Ohm |
| Frequency Response | 1.2KHz - 23KHz |
| Sensitivity | 95dB (1 watt / 1 meter) |
| Dimension (W x H x D) | 186 x 80 x 105mm |
Close
Audax Piezo Tweeter AX-61
| Maximum Power | 75W (EIA RS426) |
|---|---|
| Handling Capacity | 8 Ohm system reference |
| Frequency Response | 4KHz - 27KHz |
| Average Sensitivity | 94dB (1 watt / 1 meter) |
| Maximum Voltage | 15 V rms continuous |
| 35 V rms intermittent | |
| Dimension (W x H x D) | 90 x 90 x 65mm |
Close
Audax Piezo Tweeter AX-60
| Maximum Power | 75W (EIA RS426) |
|---|---|
| Handling Capacity | 8 Ohm system reference |
| Frequency Response | 4KHz - 27KHz |
| Average Sensitivity | 94dB (1 watt / 1 meter) |
| Maximum Voltage | 15 V rms continuous |
| 35 V rms intermittent | |
| Dimension (W x H x D) | 90 x 90 x 65mm |
