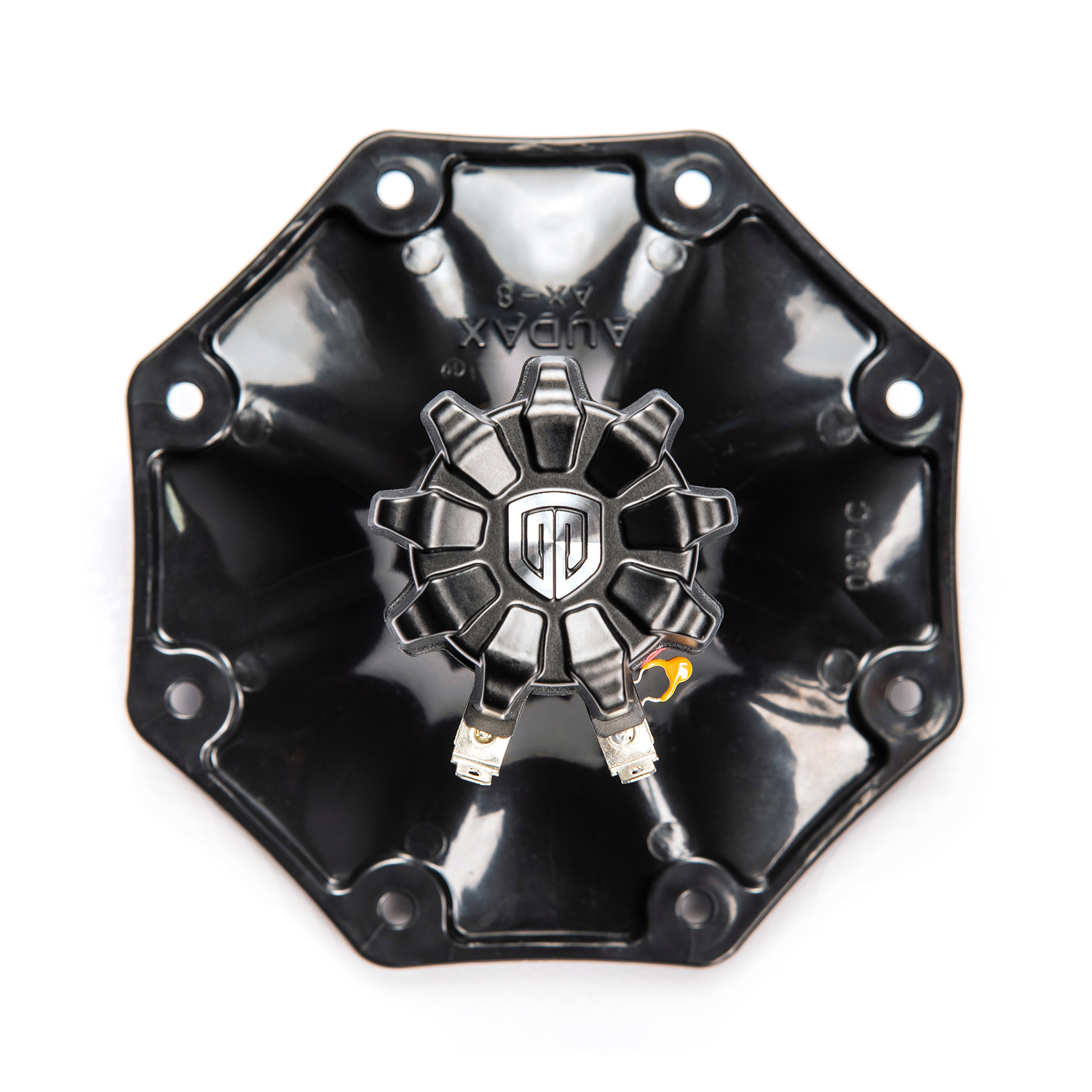

Audax Horn Tweeter AX-8
| Power Capacity | 28 Watts RMS |
|---|---|
| Nominal Impedance | 8 Ohm |
| Sensitivity (1W/1M) | 109dB |
| Frequency Range | 1.5KHz – 20KHz |
| Diaphragm Material | Phenolic |
| Voice Coil Diameter | 1 Inch (25.4mm) |
| Resettable PTCs | JK 16-0501 |
| Voice Coil Material | Round Copper |
| Material | ABS |
| Flux Density | 1.6T |
| Magnet | Neodymium N45 |
| Dimension (W x H x D) | 130 x 130 x 95mm |
AX8
