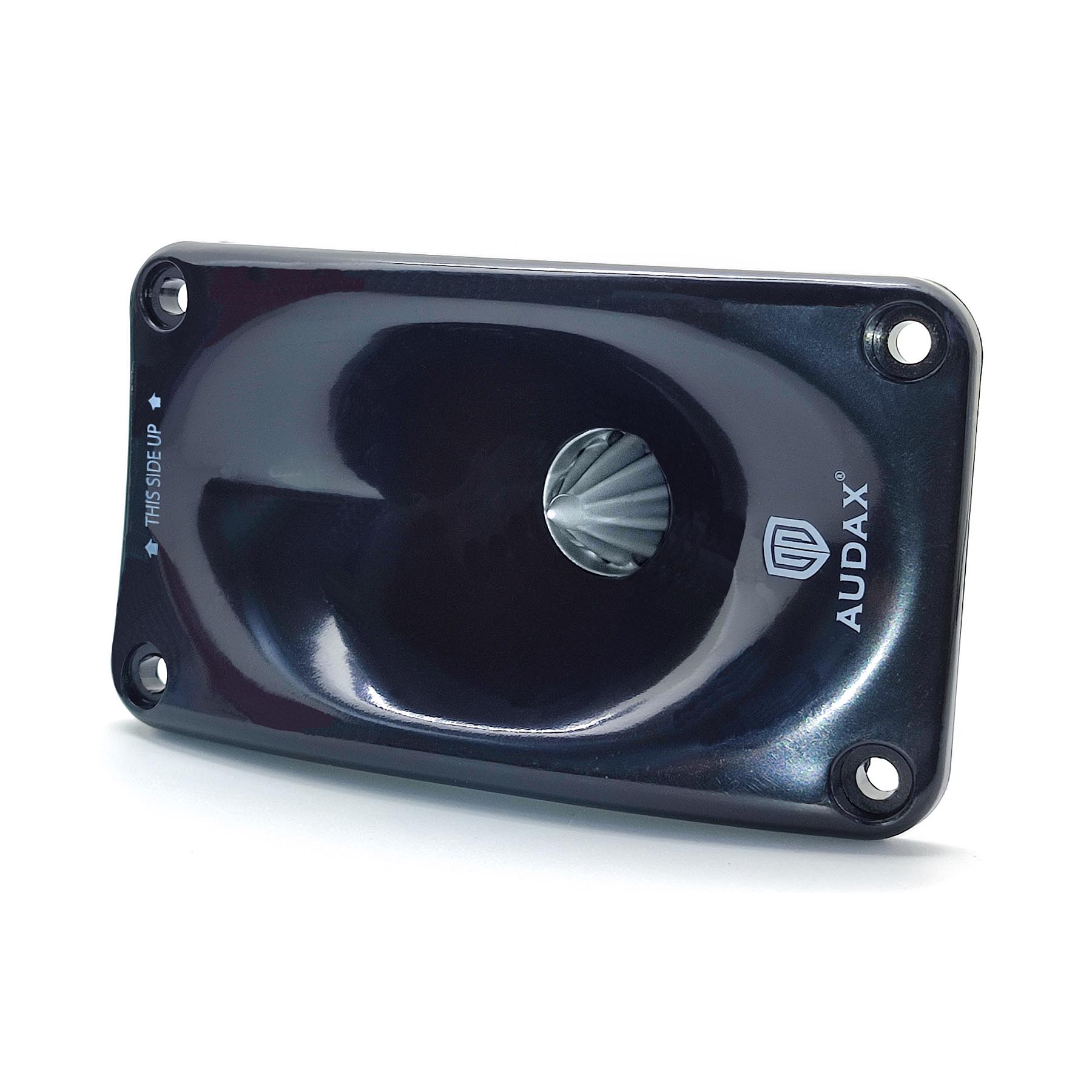

Audax Horn Tweeter AX-5
Nominal Impedance | 8 Ohm |
---|---|
Power Capacity | 28 Watts RMS (Pink Noise Signal – 12db/OCT) |
Sensitivity (1W/1M) | 107 dB |
Frequency Range | 1.5KHz – 20KHz |
Diaphragm Material | Titanium |
Voice Coil Diameter | 1 inch (25.4mm) |
Voice Coil Material | Round Copper |
Flux Density | 1.6T |
Magnet | Neodymium N-45 |
Material | ABS Black Polycarbonate |
Protector | Resettable Fuse |
Capacitor | 4.7uf 100V |
Nett Weight | 188g |
