Horn Tweeter
Click to enlarge
Horn Tweeter
Home All Products Speakers Audax Horn Tweeter AX-5R
Horn Tweeter
Audax Horn Tweeter AX-5
Back to products
Horn Tweete
Audax Horn Tweeter AX-6
Audax

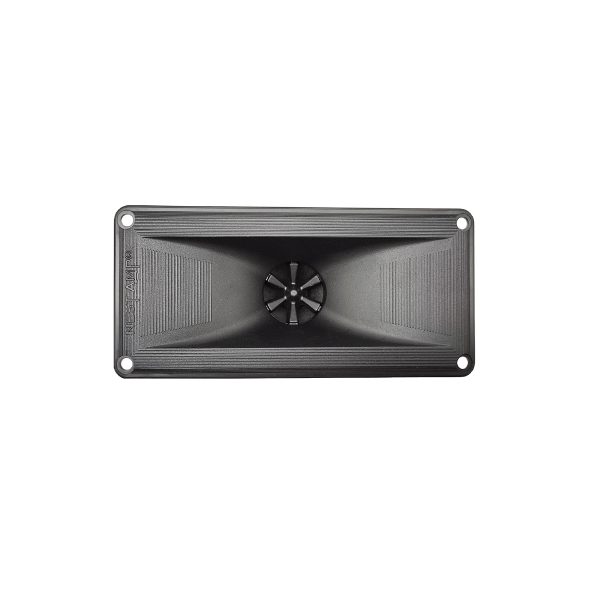

Audax Horn Tweeter AX-5R

Nominal Impedance 8 Ohm
Power Capacity 28 Watts RMS (Pink Noise Signal – 12db/OCT)
Sensitivity (1W/1M) 107 dB
Frequency Range 1.5KHz – 20KHz
Diaphragm Material Titanium
Voice Coil Diameter 1 inch (25.4mm)
Voice Coil Material Round Copper
Flux Density 1.6T
Magnet Neodymium N-45
Material ABS with Glass Filled Red Polycarbonate
Protector Resettable Fuse
Capacitor 4.7uf 100V
Nett Weight 188g



Add to quote
This product is already in quote request list
Browse the list
Category: Speakers
Share:
  • Shipping & Delivery
Shipping & Delivery

Related products

Swallow Sound Piezo Tweeter SB-140

Speakers
Power RMS/Max 75W/150W
Impedance 4 to 8 Ohm
Frequency Response 4.5KHz - 20KHz
Sensitivity 92dB (1 watt / 1 meter)
Dimension (W x H x D) 85 x 85 x 69mm
sb140
Read more
Quick view

Swallow Sound Horn Tweeter SHD-240

Speakers
Power Capacity 23 Watts RMS
Nominal Impedance 8 Ohm
Sensitivity (1W/1M) 106dB
Frequency Range 1.5KHz - 18KHz
Diaphragm Material Titanium
Voice Coil Diameter 1 Inch (25.4mm)
Voice Coil Material Round Copper
Material Engineering Plastic
Flux Density 1.35T
Magnet Neodymium N-38
Dimension (W x H x D) 186 x 78 x 118mm
SHD240
Read more
Quick view

Swallow Sound Piezo Tweeter SB-120

Speakers
Power RMS/Max 75W/150W
Impedance 4 to 8 Ohm
Frequency Response 4.5KHz - 20KHz
Sensitivity 91dB (1 watt / 1 meter)
Dimension (W x H x D) 147 x 68 x 52mm
sb120
Read more
Quick view

Swallow Sound Piezo Tweeter SB-307

Speakers
Power RMS/Max 75W/150W
Impedance 4 to 8 Ohm
Frequency Response 1.2KHz - 23KHz
Sensitivity 95dB (1 watt / 1 meter)
Dimension (W x H x D) 186 x 80 x 105mm
sb307
Read more
Quick view

Audax Horn Tweeter AX-8

Speakers
Power Capacity 28 Watts RMS
Nominal Impedance 8 Ohm
Sensitivity (1W/1M) 109dB
Frequency Range 1.5KHz - 20KHz
Diaphragm Material Phenolic
Voice Coil Diameter 1 Inch (25.4mm)
Resettable PTCs JK 16-0501
Voice Coil Material Round Copper
Material ABS
Flux Density 1.6T
Magnet Neodymium N45
Dimension (W x H x D) 130 x 130 x 95mm
AX8
Read more
Quick view

Swallow Sound Horn Tweeter SHD-280

Speakers
Power Capacity 28 Watts RMS
Nominal Impedance 8 Ohm
Sensitivity (1W/1M) 107dB
Frequency Range 1.6KHz - 20KHz
Diaphragm Material Titanium
Voice Coil Diameter 1 Inch (25.4mm)
Voice Coil Material Round Copper
Material Engineering Plastic
Flux Density 1.6T
Magnet Neodymium N-45
Dimension (W x H x D) 115 x 115 x 100 mm
SHD280
Read more
Quick view

Swallow Sound Horn Tweeter SHD-260

Speakers
Power Capacity 28 Watts RMS
Nominal Impedance 8 Ohm
Sensitivity (1W/1M) 107dB
Frequency Range 1.6KHz - 20KHz
Diaphragm Material Titanium
Voice Coil Diameter 1 Inch (25.4mm)
Voice Coil Material Round Copper
Material Engineering Plastic
Flux Density 1.6T
Magnet Neodymium N-45
Dimension (W x H x D) 186 x 78 x 124mm
SHD260
Read more
Quick view

Swallow Sound Horn Tweeter SHD-500

Speakers
Power Capacity 28 Watts RMS
Nominal Impedance 8 Ohm
Sensitivity (1W/1M) 107dB
Frequency Range 1.6KHz - 20KHz
Diaphragm Material Titanium
Voice Coil Diameter 1 Inch (25.4mm)
Voice Coil Material Round Copper
Material Engineering Plastic
Flux Density 1.6T
Magnet Neodymium N-45
Dimension (W x H x D) 350 x 350 x 210mm
SHD500
Read more
Quick view
