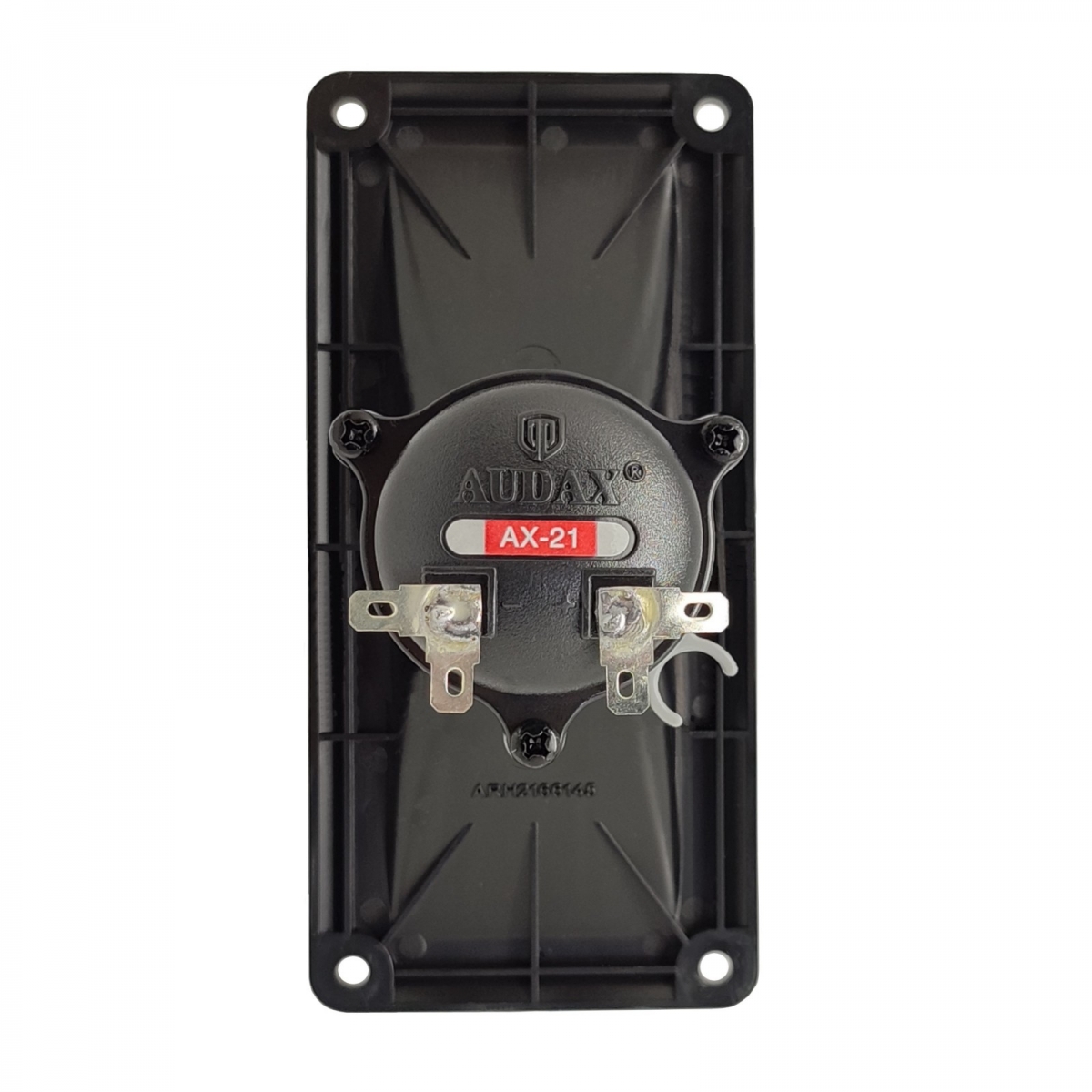

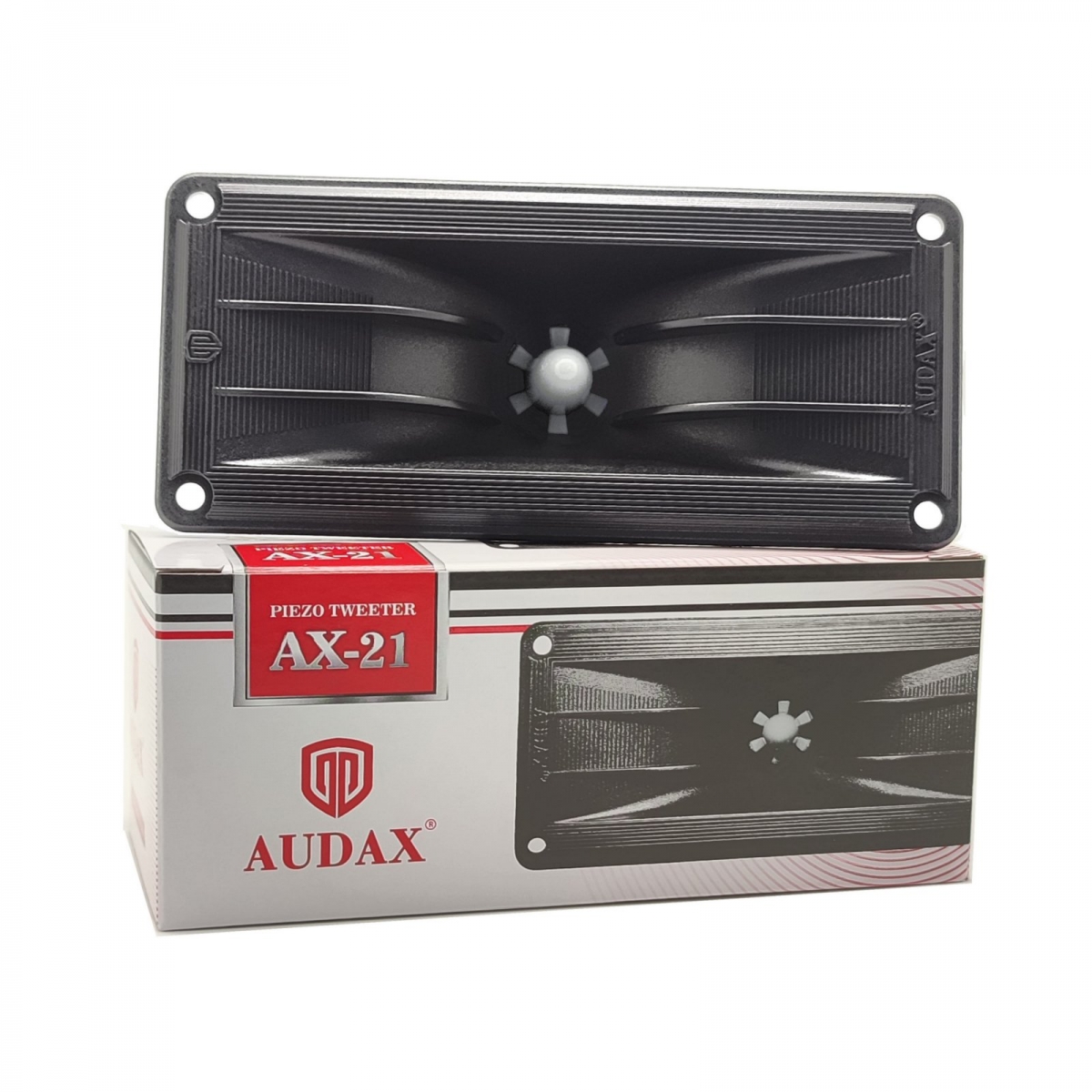

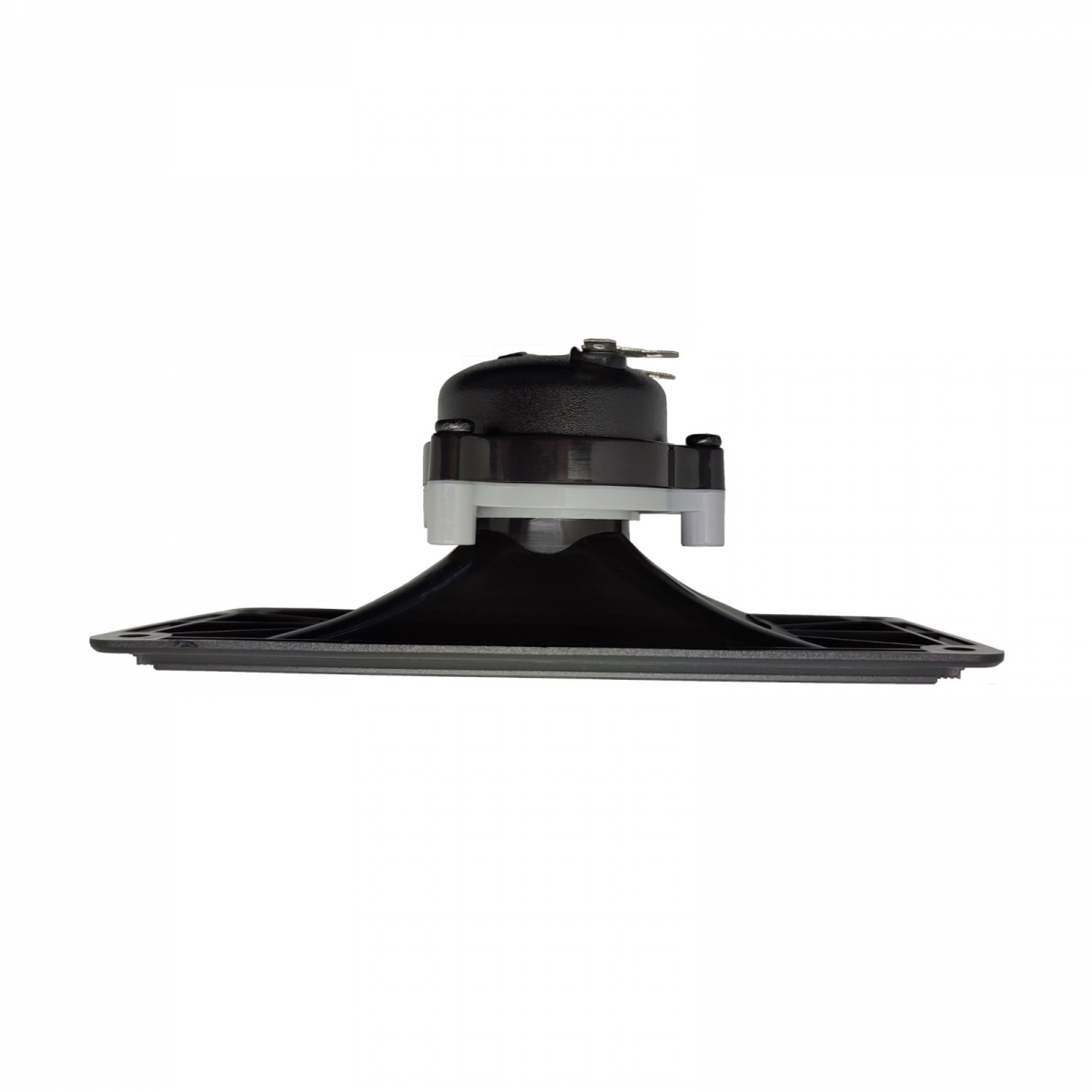

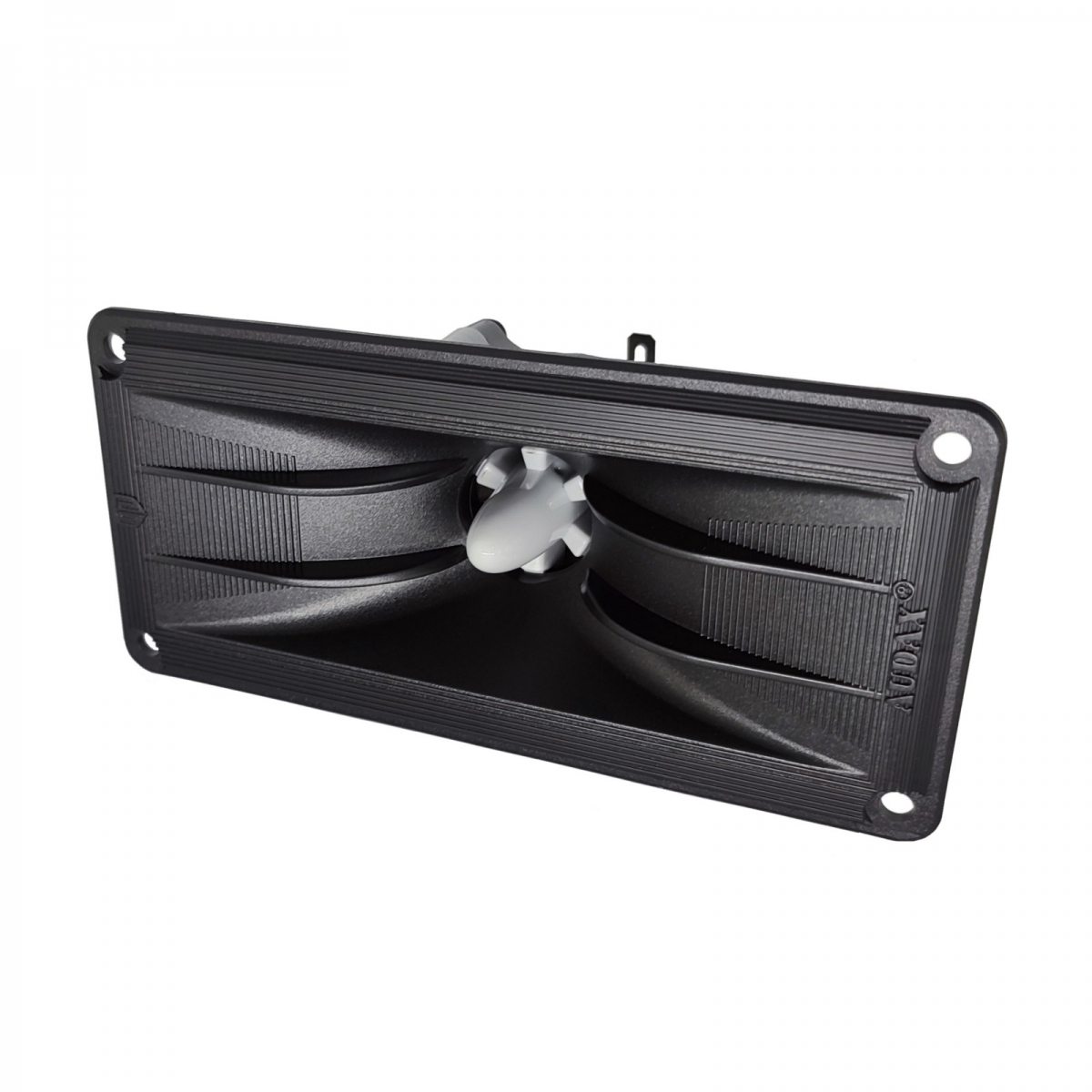

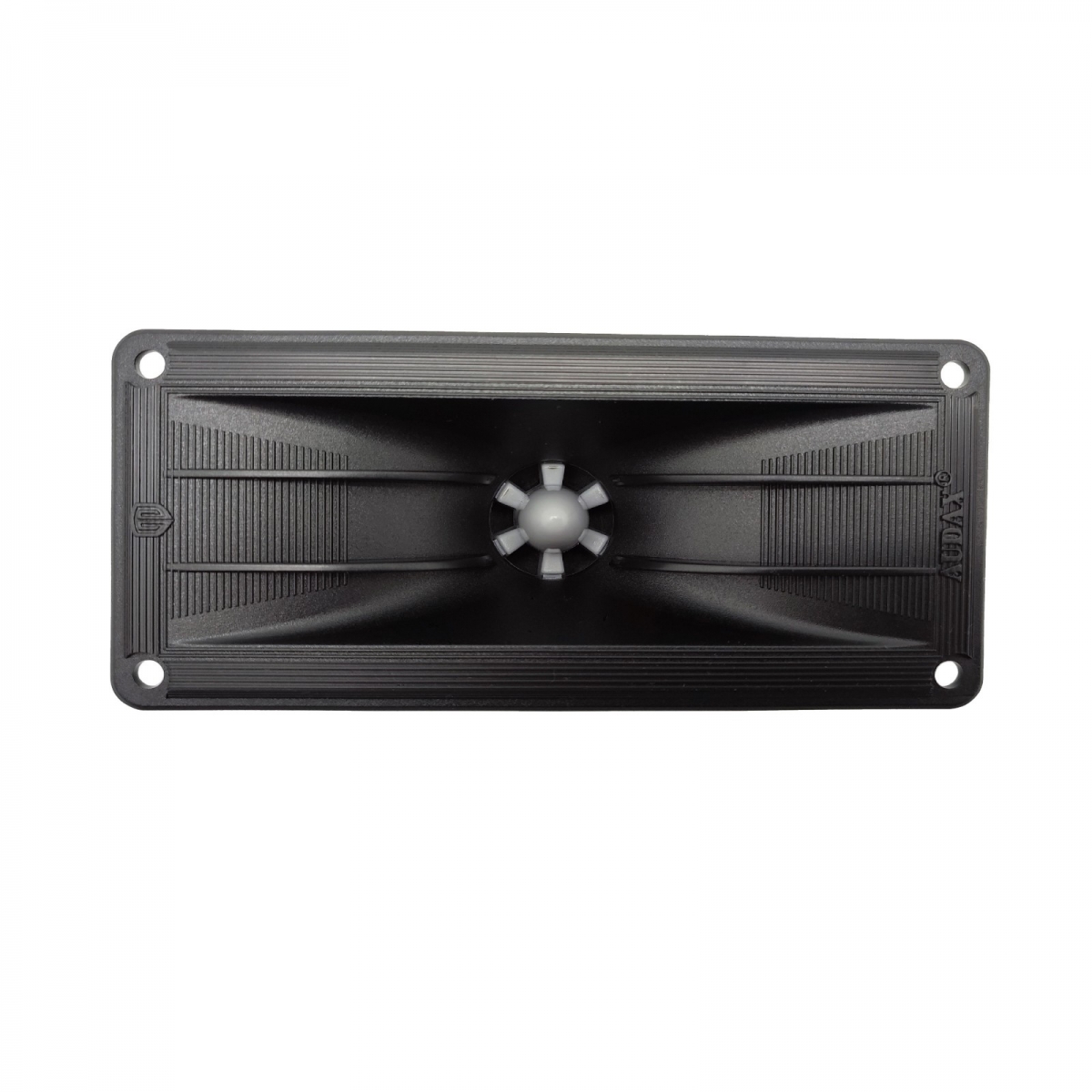

Audax Piezo Tweeter AX-21
| Frequency Response | 4KHz – 27KHz |
|---|---|
| Average Sensitivity | 94dB (1 watt / 1 meter) |
| Maximum Power | 75W (EIA RS426) |
| Handling Capacity | 8 Ohm system reference |
| Maximum Voltage | 15V rms continuous 35V rms intermittent |
| Diaphragm Material | Piezo Ceramic |
| Ceramic Element | 27mm (diameter), 0.08mm (thickness) |
| Product Material | ABS Plastic |
| Product Weight | 58 grams |
| Dimension (W x H x D) | 14.6 x 6.7 x 5.8cm |
ax21
Shipping & Delivery
Related products
Audax Horn Tweeter AX-10
| Power Capacity | 28 Watts RMS |
|---|---|
| Nominal Impedance | 8 Ohm |
| Sensitivity (1W/1M) | 109dB |
| Frequency Range | 1.5KHz - 20KHz |
| Diaphragm Material | Phenolic |
| Voice Coil Diameter | 1 Inch (25.4mm) |
| Resettable PTCs | JK 16-0501 |
| Voice Coil Material | Round Copper |
| Material | ABS |
| Flux Density | 1.6T |
| Magnet | Neodymium N45 |
| Dimension (W x H x D) | 130 x 130 x 100mm |
Swallow Sound Horn Tweeter SHD-270
| Power Capacity | 28 Watts RMS |
|---|---|
| Nominal Impedance | 8 Ohm |
| Sensitivity (1W/1M) | 107dB |
| Frequency Range | 1.6KHz - 20KHz |
| Diaphragm Material | Titanium |
| Voice Coil Diameter | 1 Inch (25.4mm) |
| Voice Coil Material | Round Copper |
| Material | Engineering Plastic |
| Flux Density | 1.6T |
| Magnet | Neodymium N-45 |
| Dimension (W x H x D) | 152 x 77 x 88mm |
Swallow Sound Horn Tweeter SHD-220
| Power Capacity | 23 Watts RMS |
|---|---|
| Nominal Impedance | 8 Ohm |
| Sensitivity (1W/1M) | 106dB |
| Frequency Range | 1.5KHz - 18KHz |
| Diaphragm Material | Titanium |
| Voice Coil Diameter | 1 Inch (25.4mm) |
| Voice Coil Material | Round Copper |
| Material | Engineering Plastic |
| Flux Density | 1.35T |
| Magnet | Neodymium N-38 |
| Dimension (W x H x D) | 107 x 107 x 87 mm |
Swallow Sound Horn Tweeter SHD-260
| Power Capacity | 28 Watts RMS |
|---|---|
| Nominal Impedance | 8 Ohm |
| Sensitivity (1W/1M) | 107dB |
| Frequency Range | 1.6KHz - 20KHz |
| Diaphragm Material | Titanium |
| Voice Coil Diameter | 1 Inch (25.4mm) |
| Voice Coil Material | Round Copper |
| Material | Engineering Plastic |
| Flux Density | 1.6T |
| Magnet | Neodymium N-45 |
| Dimension (W x H x D) | 186 x 78 x 124mm |
